Tandem Gooseneck
Playcraft Gooseneck Trailers are truly loaded with great features and benefits.
Playcraft Trailers manufactures the finest gooseneck trailers available in lengths up to 40′ with GVWR ratings from 12k to 25,900 or 25.9k. Our Gooseneck trailers provide industry leading features and the absolute best value in the marketplace. We take great pride in working with our dealers & customers to meet their hauling demands.
*Trailers pictured may have upgrade options, call for more information.
MODEL | DESCRIPTION |
---|---|
GN 16 | 8.5 X 16′ |
GN 18 | 8.5 X 18′ |
GN 20 | 8.5 X 20′ |
GN 22 | 8.5 X 22′ |
GN 24 | 8.5 X 24′ |
GN 26 | 8.5 X 26′ |
GN 28 | 8.5 X 28′ |
GN 30 | 8.5 X 30′ |
Custom Sizes Available
STANDARD FEATURES
GVW | 12000# |
AXLES | 2/6000# |
BRAKES | ELECTRIC BRAKE ON BOTH AXLES, BREAKAWAY KIT, 7 WAY PLUG & HARNESS |
TIRES & WHEELS | 8 Lug/16″ 235/80R |
COUPLER | 2 5/16″ COUPLER |
JACK | (2) 12000# DROP LEG W/CHAIN COMPARTMENT |
FRAME | 12″ | BEAM 19LB |
FLOOR | 2 X 6 WEATHER TREATED WOOD |
LIGHTS | LED |
WIRING | JACKETED/NOT EXPOSED |

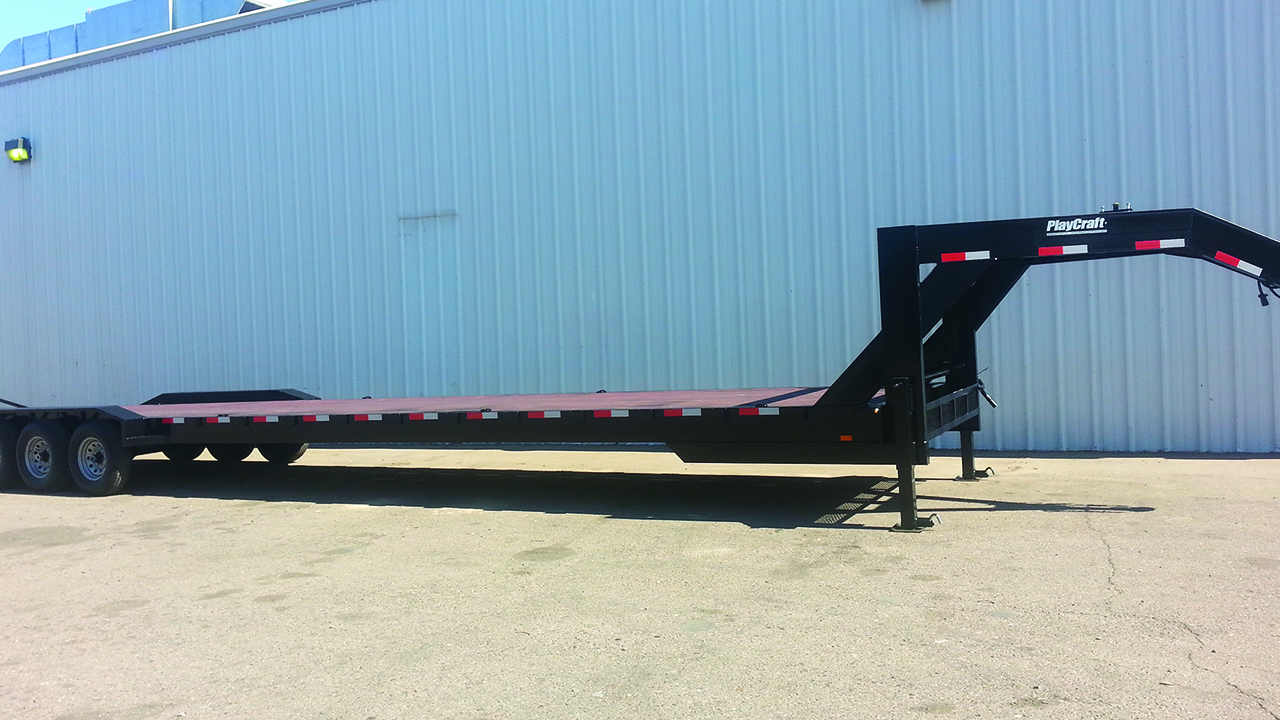

The Gooseneck trailer incorporates a pivoting arm that attaches to a ball that is mounted in the bed of the tow vehicle. Gooseneck trailers are excellent for towing heavy loads and equipment due to their increased stability since any lateral load pressure is transferred down directly to the tow vehicles rear axle and distributed to the ground through the tow vehicles tires. The typical bumper pull style trailer exerts much more pressure on the tow vehicle further back and lower which can lead to inefficient weight transfer.
A tighter trailer turning radius is possible with the gooseneck trailer with allows increased maneuverability in all applications. This can be an excellent advantage when having to maneuver in tighter quarters or navigating neighborhoods. The Gooseneck trailer is very operator friendly due to the fact that it navigates in the direction that your turn steering wheel.
Weight distribution and load transfer are inherent advantages in the Gooseneck design versus bumper pull trailers due to the fact that they can handle a 15-25% hitchload where as a bumper pull style trailer can only handle 10-15%. This allows the user to have more options as to where the material or equipment being hauled can be placed.
TANDEM GOOSENECK
8.5 X 16 |
8.5 X 18 |
8.5 X 20 |
8.5 X 22 |
8.5 X 24 |
8.5 X 26 |
8.5 X 28 |
8.5 X 30 |
Tandem Dual Gooseneck Trailers
STANDARD FEATURES
GVW | 22000# |
AXLES | 2/10000# |
BRAKES | ELECTRIC BRAKE ON BOTH AXLES, BREAKAWAY KIT, 7 WAY PLUG & HARNESS |
TIRES & WHEELS | 16″ 235/80D16 16X8 – SILVER MODS |
COUPLER | 2 5/16″ ADJUSTABLE GN COUPLER |
JACK | 12K DROP LEG JACKS |
FRAME | 12″ | BEAM 19LB |
DECK | 8′ 6″ INCLUDES RUB RAIL & STAKE POCKETS |
FLOOR | 2 X 6 WEATHER TREATED WOOD |
LIGHTS | LED |
WIRING | JACKETED/NOT EXPOSED |
MODEL | DESCRIPTION |
---|---|
GN 8.5 X 20-22 | 8.5 X 20-22′ |
GN 8.5 X 23-25 | 8.5 X 23-25′ |
GN 8.5 X 28 | 8.5 X 28′ |
GN 8.5 X 30 | 8.5 X 30′ |
Custom Sizes Available
Flat Bed Trailers
*Trailers pictured may have upgrade options, call for more information.
MODEL | DESCRIPTION |
---|---|
FB 16 | 8.5′ X 16′ |
FB 18 | 8.5′ X 18′ |
FB 20 | 8.5′ X 20 |
Custom Sizes Available
STANDARD FEATURES
GVW | 7000# |
AXLES | 2/3500# |
BRAKES | ELECTRIC BRAKE ON ONE AXLES, BREAKAWAY KIT, 7 WAY PLUG & HARNESS |
TIRES & WHEELS | 205/75D 15 |
COUPLER | 2 5/16″ COUPLER |
JACK | 5K MINI DROP LEG |
FRAME | CHANNEL IRON |
DECK | 8’6″ INCLUDES STAKE POCKETS & RUB RAIL |
FLOOR | 2 X 6 WEATHER TREATED WOOD |
LIGHTS | LED |
WIRING | JACKETED/NOT EXPOSED |

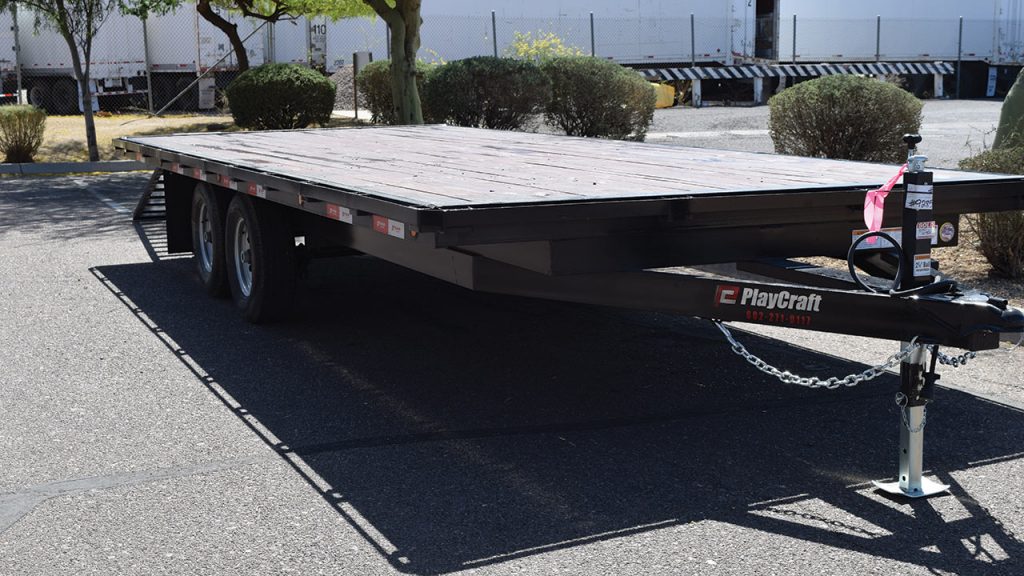

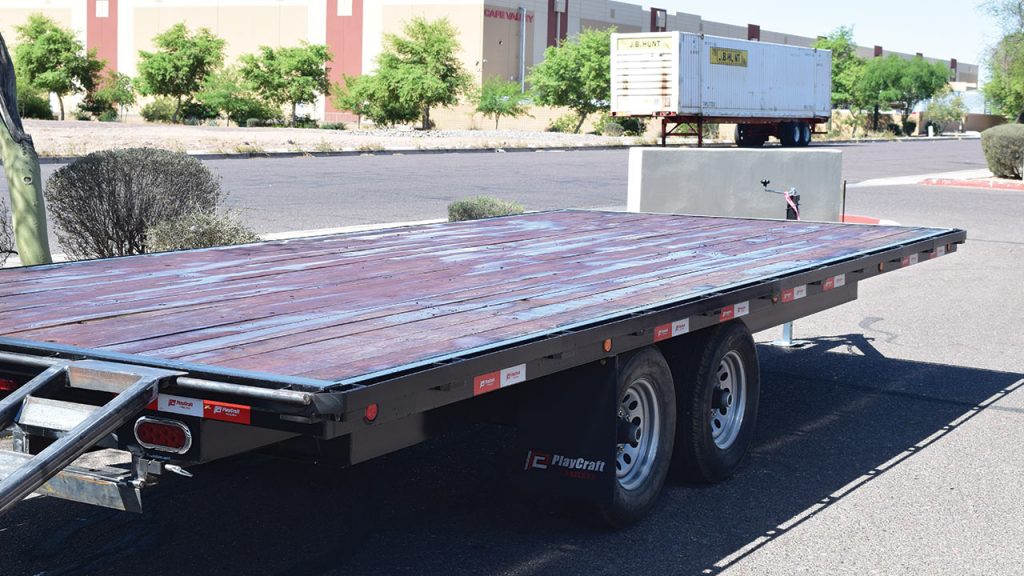

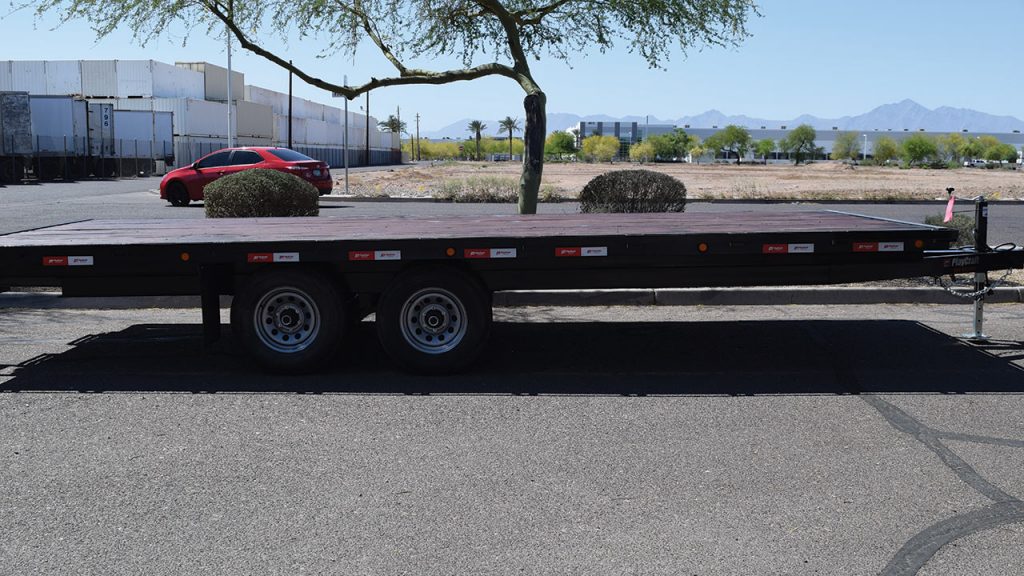

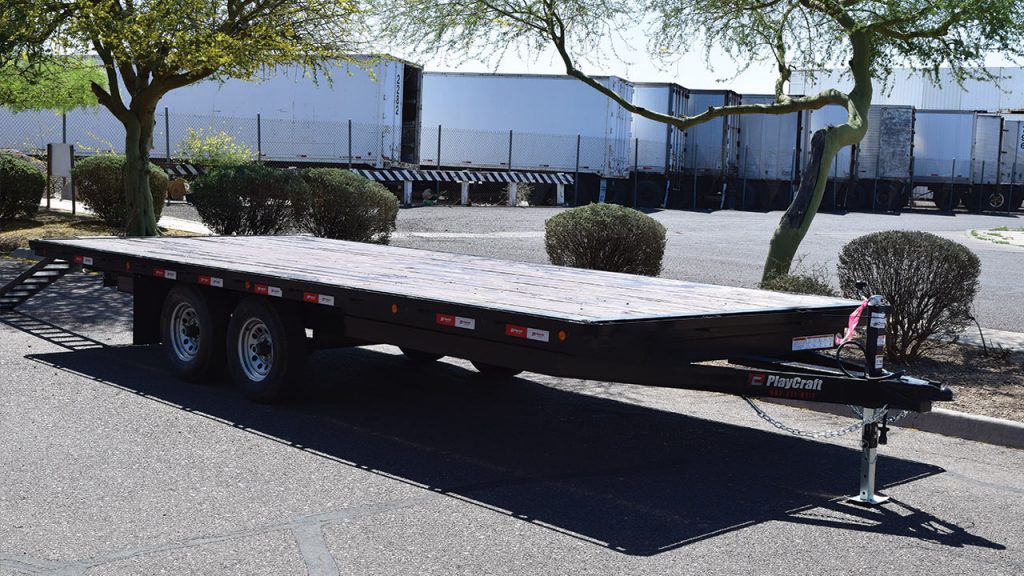

Our Flat Bed Trailers provide one of the most stable over the axle deck trailers currently on the market. The 8’6” deck, which includes the rub rails & stake pockets, gives our clients the space needed to transport larger loads.

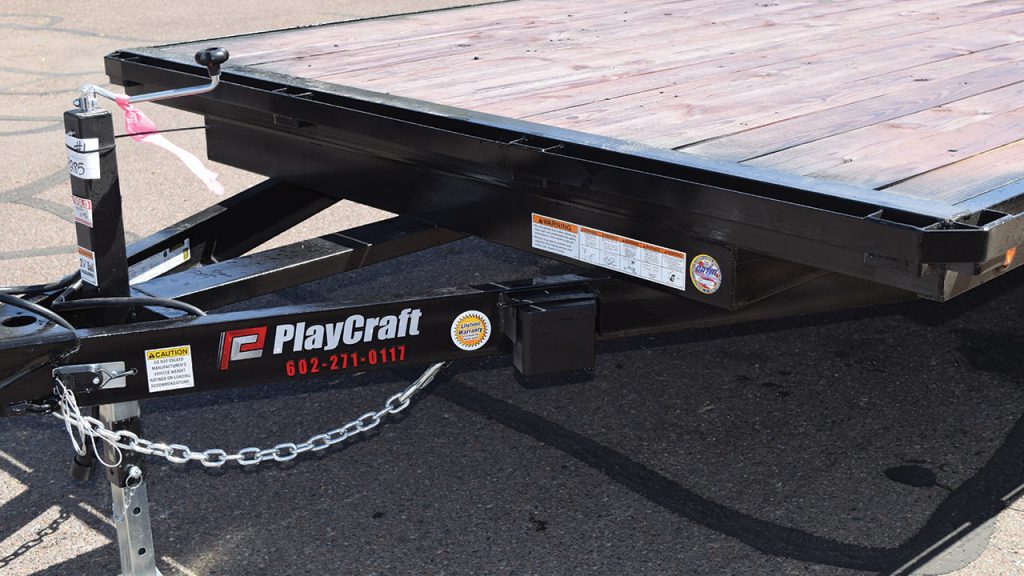

We manufacture this Flat Bed Trailer with a wider frame to make hauling palletized freight, equipment, or other large loads easier on the tow vehicle and driver. Due to the location of the deck, fenders are not required; this translates to 19” more deck width for our clients to use. The wrapped tongue on this Playcraft Trailer reinforces the Flat Bed’s frame strength and stability.

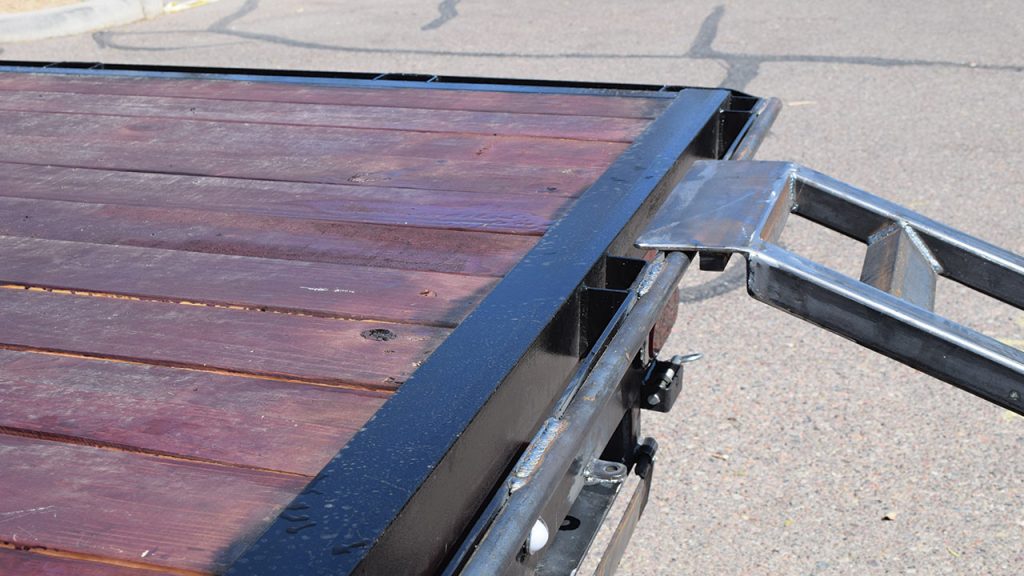

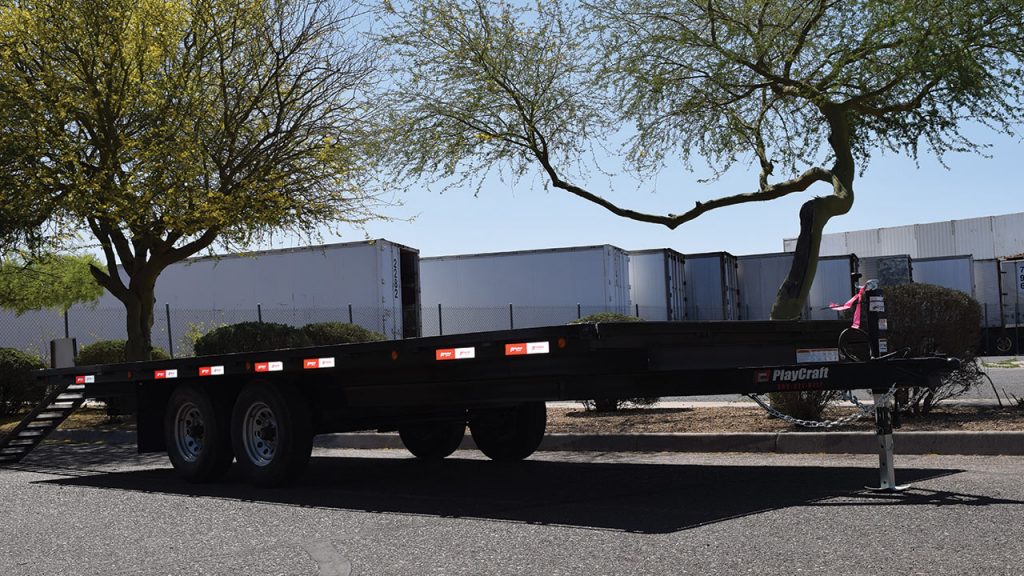

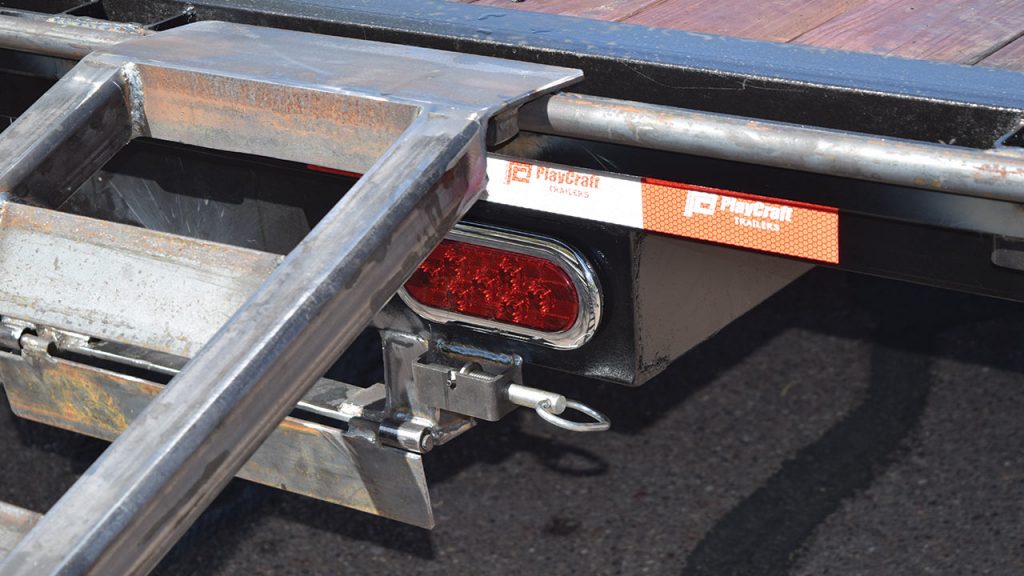

The Flat Bed Trailer is built for versatility. The standard stake pockets can accommodate stake sides to contain loose loads. Our clients can also order the Flat Bed Trailer with 8’ ramps and even a dovetail to allow for loading items such as tractors or cars. Call your Playcraft Trailers dealer now to find out what other options and sizes are available.
